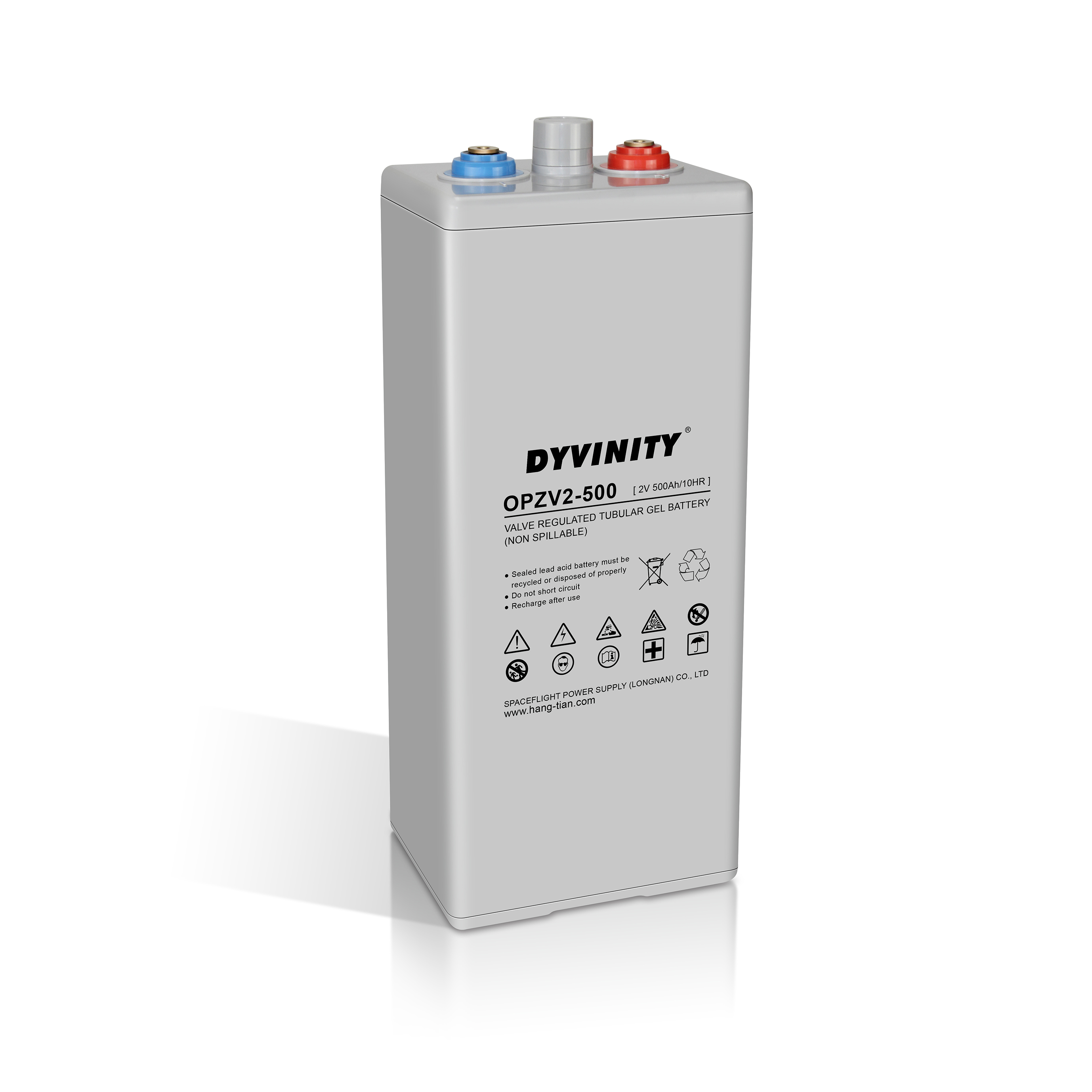

OPzV2-500 Battery
See more pictures

Voltage: 2V
Capacity: 150Ah~3000Ah
Designed floating service life: 20 years at 20℃/68℉
Designed cycle life more than 1200 cycles at 80% DOD at 20oC/68oF

OPzV series Gel batteries use German tubular pure gel technology, key raw material imported from Europe, key production equipment imported from Europe. The Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with more than 20 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

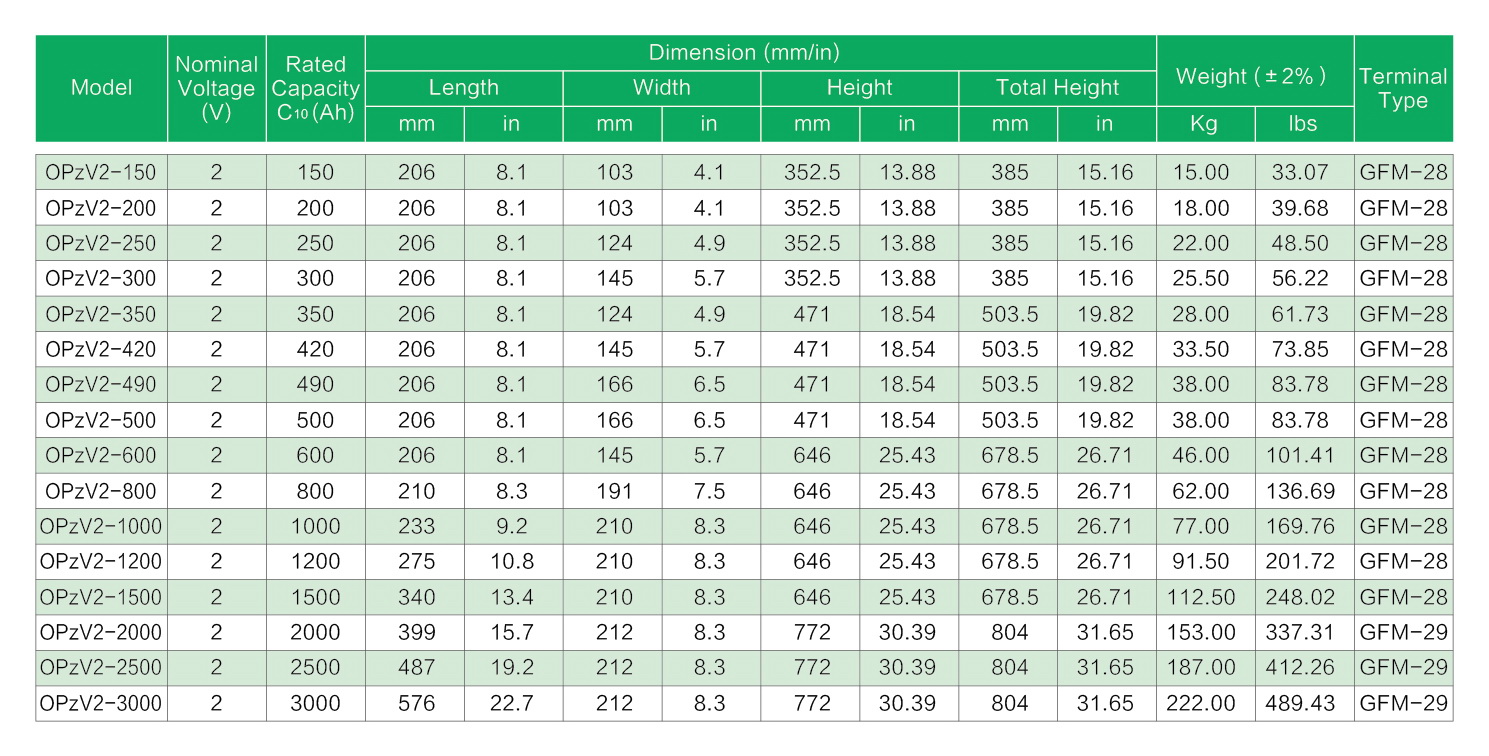

Model: OPzV2-500
Capacity: 500Ah
Volt: 2V
Size: 206×166×471×503.5 mm

Product Detail
Feedback Now

OPzV2-500 Battery

General Features
● Advanced unique Gel filling technology
● Excessive gelatinaized electrolyte
● Long service lifetime in deep cycle application
● Good performance at extremely temperature
● Excellent deep discharge recovery capability
● high and low temperature suitability from -40℃ – 60 ℃
● Proof against deep discharge according to DIN 43539 T5

● Positive plate – Tubular Plate with die cast Pb-Sb alloy grid
● Negative plate – Balanced Pb-Ca grid for improved recombination efficiency
● Separator – leaf shape polymer separator
● Electrolyte – Dilute high purity sulphuric acid with fumed Silica gel
● Battery container and cover – ABS
● Pillar seal – 100% factory tested, proven two layers epoxy resin seal
● Relief valve – Complete with integrated flame arrestor
