Valve-Regulated Lead-Acid (VRLA) batteries have become a cornerstone in various applications requiring reliable and maintenance-free power solutions. Uninterruptible power supplies (UPS), renewable energy systems, telecommunications, and other applications use these batteries extensively. Innovations in VRLA battery design have significantly enhanced their performance, durability, and safety. This article explores the key design advancements in VRLA lead-acid batteries, highlighting their benefits and potential applications.

VRLA Lead-Acid Batteries: Innovations in Design

Understanding VRLA Batteries

Basic Structure and Function

VRLA batteries are a type of lead-acid battery meant to be sealed and maintenance-free. They consist of:

  • Electrodes: The positive and negative electrodes are made of lead and lead dioxide, respectively.
  • Electrolyte: A sulfuric acid solution, immobilized either in a gel form or absorbed in a fiberglass mat.
  • Valves: In the event of an overcharge, gas can escape thanks to pressure-release valves, which control internal pressure.

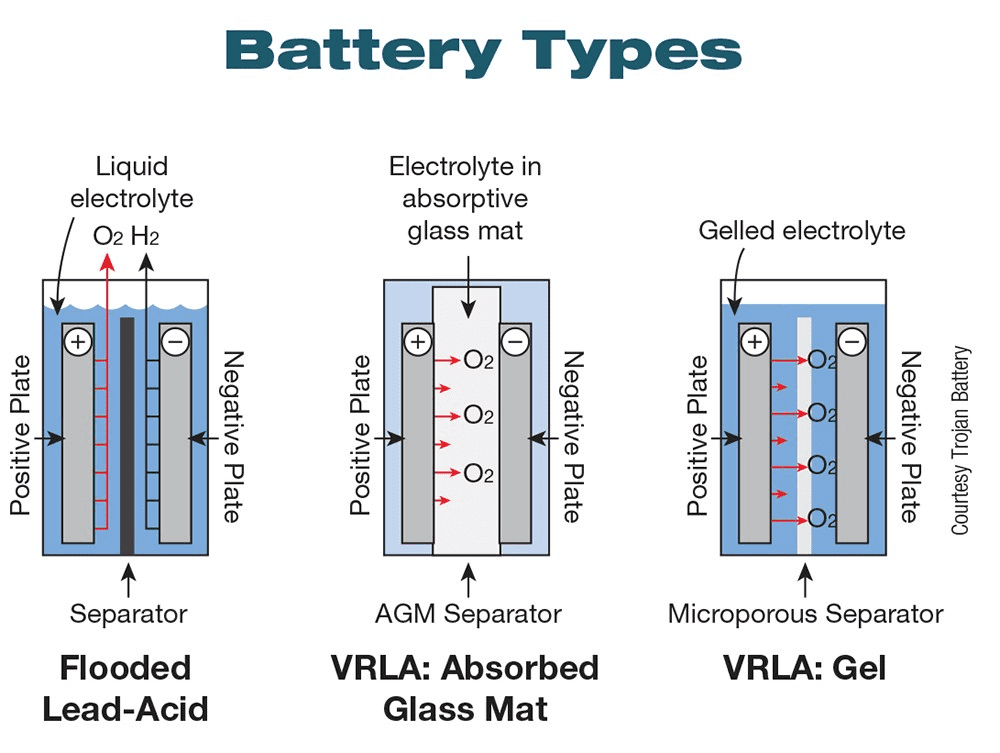

Types of VRLA Batteries

There are two primary types of VRLA batteries:

  • Absorbent Glass Mat (AGM): Uses a fiberglass mat to absorb the electrolyte, providing better performance and safety.
  • Gel Cell: Uses a gelled electrolyte, which is more robust against deep discharges and offers better performance in extreme temperatures.

Innovations in VRLA Battery Design

Enhanced Plate Technology

Advancements in plate technology have led to improved efficiency and longevity:

  • Thin Plate Pure Lead (TPPL): TPPL technology uses thinner and purer lead plates, increasing the surface area and enhancing energy density and cycle life.
  • Grid Design Improvements: Improved grid designs lower internal resistance and increase conductivity. Examples of these improvements include the use of corrosion-resistant metals and improved grid patterns.

Advanced Electrolyte Formulations

Innovations in electrolyte formulations have boosted performance and safety:

  • High Purity Electrolytes: Using high-purity sulfuric acid reduces impurities that can cause self-discharge and short circuits.
  • Enhanced Gel Formulations: Improved gel formulations offer better electrolyte stability, reducing the risk of electrolyte leakage and enhancing performance under deep discharge conditions.

Improved Separator Materials

The development of better separator materials has contributed to longer battery life and increased reliability:

  • High Porosity Separators: These separators enhance ion flow, improving charge and discharge rates.
  • Durable Materials: Use of materials resistant to oxidation and acid corrosion prolongs the lifespan of the battery.

Pressure Relief Valve Innovations

Innovations in pressure relief valve technology ensure safer and more reliable operation:

  • Self-Sealing Valves: These valves prevent external contaminants from entering the battery, reducing the risk of internal short circuits.
  • Precision Regulation: Advanced valve designs offer precise pressure regulation, preventing excessive gas build-up and potential explosion risks.

Intelligent Battery Management Systems (BMS)

Integrating intelligent BMS with VRLA batteries enhances their performance and reliability:

  • Real-Time Monitoring: In order to facilitate preventive maintenance and prevent unplanned failures, BMS offers real-time data on battery health, state of charge (SOC), and state of health (SOH).
  • Thermal Management: Advanced BMS includes thermal management features, preventing overheating and optimizing performance across different temperature ranges.

Benefits of Design Innovations

Enhanced Performance

Innovations in VRLA battery design translate into enhanced performance metrics:

  • Higher Energy Density: Improved plate technology and electrolyte formulations result in higher energy storage capacity.
  • Better Charge Efficiency: Advanced separators and grid designs reduce internal resistance, improving charge acceptance and efficiency.

Increased Longevity

Design improvements have significantly extended the lifespan of VRLA batteries:

  • Longer Cycle Life: More charge-discharge cycles are possible without appreciable capacity loss thanks to improved materials and designs.
  • Reduced Maintenance: Advanced components and sealed designs minimize the requirement for routine maintenance, ensuring long-term dependability.

Improved Safety

Safety is a critical aspect of battery design, and VRLA innovations have addressed many safety concerns:

  • Leak-Proof Design: Gel and AGM technologies ensure the electrolyte remains immobilized, reducing the risk of leaks.
  • Overpressure Protection: Dangerous overpressure conditions are avoided using BMS and sophisticated pressure release valves.

Environmental Benefits

Innovations in VRLA battery design also contribute to environmental sustainability:

  • Recyclability: Modern VRLA batteries are designed with recyclability in mind, reducing environmental impact at the end of their lifecycle.
  • Reduced Hazardous Emissions: Improved sealing and advanced materials reduce the risk of hazardous emissions during operation.

Applications of Innovative VRLA Batteries


In telecommunications, VRLA batteries provide reliable backup power:

  • Uninterrupted Service: Enhanced performance and longevity ensure continuous service during power outages.
  • Space Efficiency: In telecom facilities, higher energy density enables more compact installations.

Uninterruptible Power Supplies (UPS)

UPS systems rely on VRLA batteries to deliver instantaneous power during outages:

  • Critical Infrastructure Protection: Assures the ongoing operation of vital infrastructure, including hospitals and data centers.
  • High Reliability: Design innovations reduce the need for frequent replacements by increasing dependability and extending service life.

Renewable Energy Systems

VRLA batteries are integral to renewable energy storage solutions:

  • Solar and Wind Integration: Store solar and wind energy effectively to provide a steady supply of electricity.
  • Deep Discharge Capabilities: Advanced gel formulations allow for deep discharge cycles without compromising battery life, making them ideal for renewable applications.

Electric Vehicles (EVs) and Mobility

VRLA batteries are used in electric vehicles and mobility solutions:

  • Electric Bicycles and Scooters: Provide reliable and maintenance-free power for personal transportation devices.
  • Backup Power for EVs: Serve as auxiliary power sources in electric vehicles, ensuring critical systems remain operational during primary battery failures.

Future Prospects and Trends

Hybrid Technologies

Combining VRLA batteries with other technologies, such as lithium-ion, could offer hybrid solutions with enhanced performance and reliability:

  • Integrated Systems: Hybrid systems can leverage the strengths of both technologies, providing more versatile and robust energy storage solutions.

Smart Grids and IoT Integration

Integration with smart grids and the Internet of Things (IoT) can optimize VRLA battery usage:

  • Smart Management: IoT-enabled VRLA batteries can communicate with grid systems to optimize energy distribution and storage.
  • Predictive Maintenance: Proactive maintenance may be enabled and downtime can be minimized by using advanced monitoring and data analytics to anticipate any problems.

Continued Material Innovation

Ongoing research into new materials and designs will continue to drive improvements in VRLA battery performance:

  • Nanomaterials: Use of nanotechnology could enhance electrode and electrolyte performance, leading to even higher energy densities and longer lifespans.
  • Sustainable Materials: The creation of more ecologically friendly and sustainable materials will lessen the impact of battery manufacture and disposal on the environment.


Innovations in VRLA lead-acid battery design have significantly enhanced their performance, longevity, and safety, making them a reliable choice for various applications. From telecommunications and UPS systems to renewable energy storage and electric vehicles, these advancements have broadened the scope and utility of VRLA batteries. As research and development continue, we can expect further improvements that will solidify the role of VRLA batteries in the evolving landscape of energy storage and management.
