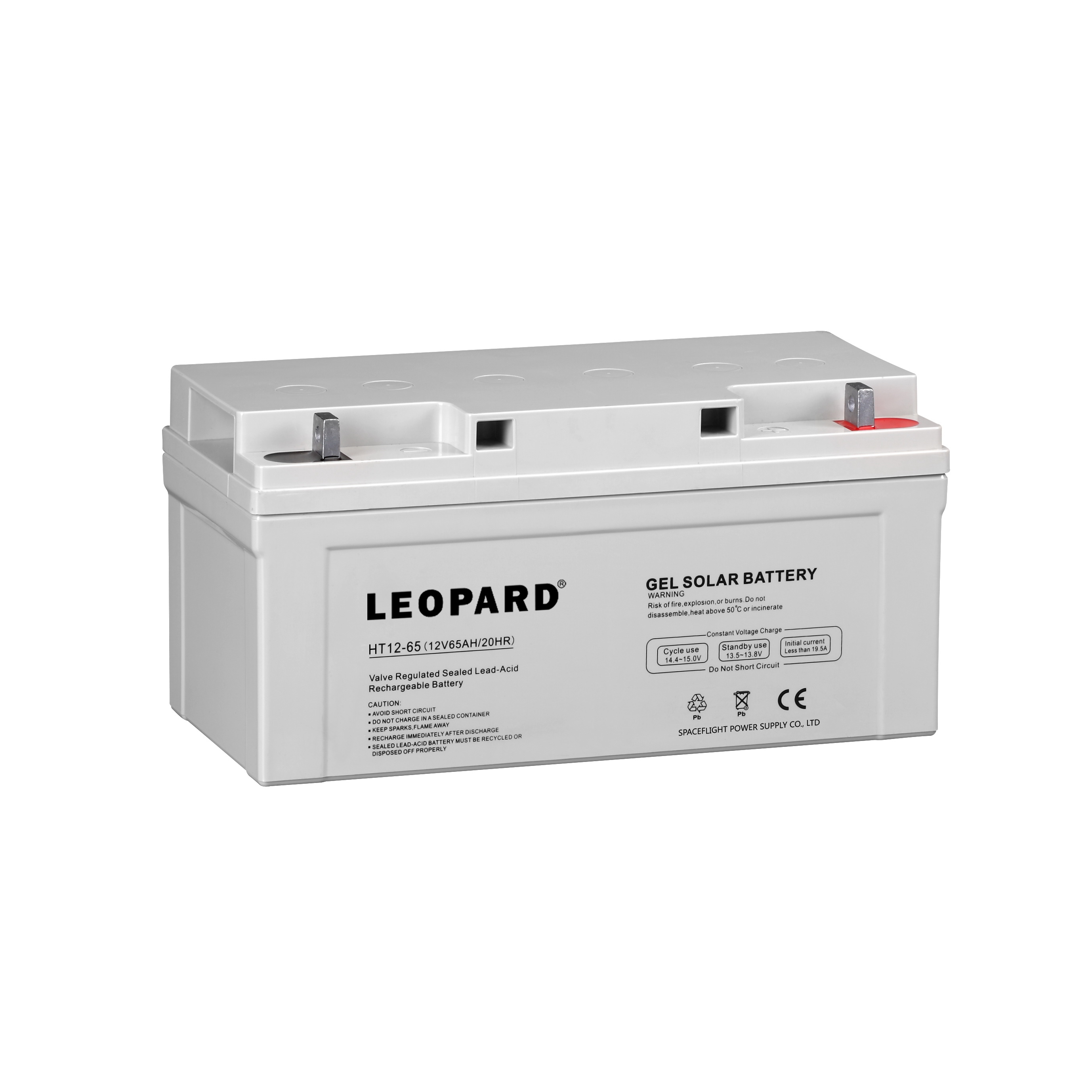

HTG12-65 Gel Battery
See more pictures

Capacity: 2V: 100 Ah to 3000 Ah; 12V: 12Ah ~ 250Ah
Charge voltage: Cycle use: 2.30~2.35V/cell; Float use: 2.23~2.27V/cell
Charge current: The initial current less then 0.3CA

GE (GEL) series is designed for solar and other renewable energy system applications with a 10 year design life. it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the GE series offers excellent recovery after deep discharge under frequent cyclic discharge use, and can deliver over 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.

Model: HTG12-65
Capacity: 65Ah
Volt: 12V
Size: 351×166×179×179 mm

Product Detail
Feedback Now

HTG12-65 Gel Battery

● Structure
The effective mechanical design presents a robust structure and higher energy density.
● Separator
High-temperature stability, mechanical strength and low acid displacement.
● GEL Electrolyte
Gelified electrolyte suspends acid stratification, and does not need to be replenished, because it does not evaporate.
● Ventilation
High-quality vent valve with low tolerances in opening and closing pressure reduces the gassing rate significantly.
